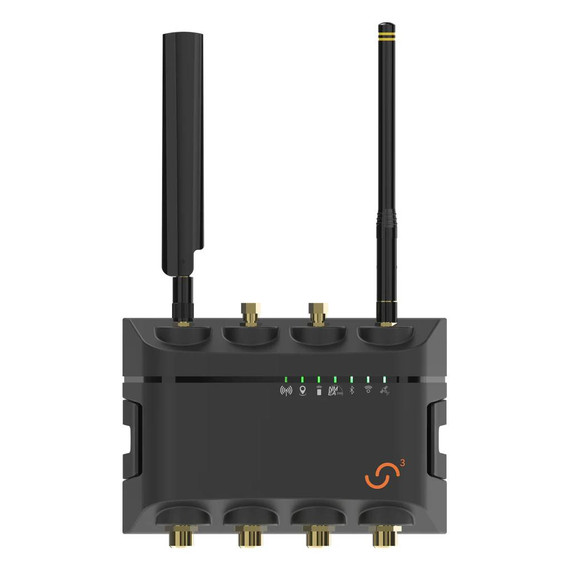

Yamaha Siren 3 Pro, 917 MHz Band 6X8-85B11-00-00

Yamaha Siren 3 Pro, 917 MHz Band 6X8-85B11-00-00

The Siren 3 Pro is the most advanced Main Device we offer. Together with the Siren Marine Mobile App, our Smart Boat Monitoring System puts your boat in the palm of your hand 24/7.

Install the Siren 3 Pro on your boat to monitor and track multiple critical systems such as battery voltage, bilge pump activity, water levels, shore power status, engine performance, temperature, location & more right on the App. Some monitoring capabilities require a Siren 3 Series Wireless Sensor or Wired Sensor.

Specifications:

Operating Voltage: 9-30 VDC

Internal Battery Type: 3000mAh Lithium Polymer Battery

Internal Battery Backup Power: Up to 48 Hours Backup Power

Firmware Upgradeability: Over the Air (OTA) for both Siren 3 Pro and wireless sensors

Cellular: External Antenna, 4G/5G CAT-M1, with fall back to NB-IoT and EGPRS

Wireless: External Antenna, Sub-GHz

NMEA 2000: CAN Bus 1, M12 (5 Pin)

Application-Dependent Protocol (ex. J1939): CAN Bus 2, M12 (5 Pin)

Satellite Modem: RS-232, M12 (12 Pin) Wiring Cable #2

Expansion Bus: RS-422. M12 (12 Pin) Wiring Cable #2

Mounting: Snap-in bracket with (4) screws provided for mounting

Positioning: Internal Antenna, GNSS, GPS/GLONASS with SBAS, (External antenna option available)

Connectivity: Interface cable with mating connector of 1m length provided for wired inputs and outputs with 24 AWG conductors.

Environmental/Temperature (Operating): 32°F to 113°F / 0°C to 45°C

Environmental/Temperature (Storage): -4°F to 140°F / -20°C to 60°C

Humidity: 0 to 90% RH

Water & Dust Tolerance: IP67
